No magnetic drill collar

1、Introduction

Magnetic drill collars are made of low carbon high chromium manganese alloy steel, which is refined by strict chemical composition ratio and forged to achieve its mechanical properties. It has good low permeability, high strength mechanical properties, excellent intergranular corrosion cracking resistance and excellent wear resistance. When the magnetic field intensity is 1x105/4πA/m, the relative permeability urs1.010 of the non-magnetic drill collar is less than 0.05uT when the magnetic field intensity is 1x105/4πa /m.

2、Effect

Because all magnetic measuring instruments, when measuring the direction of the borehole, are induced by the borehole geomagnetic field, the measuring instruments must be in a magnetically free environment. However, in the process of drilling, the drilling tool often has magnetic properties, which will affect the magnetic measuring instrument, and the correct borehole trajectory measurement information data can not be obtained. The use of non-magnetic drill collars can implement the non-magnetic environment, and has the characteristics of drill collars in drilling.

3、Working Principle

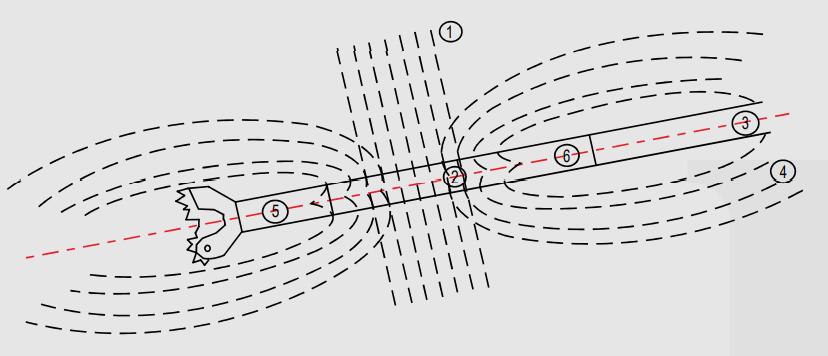

Schematic diagram of the action principle of non-magnetic drill collars

① Geomagnetic field line :

② magnetic measuring instrument :

③ Steel drill collars :

④ interfered magnetic field line :

⑤ bit joint; The interference magnetic field lines above and below the magnetic collars have no effect on the position of the measuring instrument.

Therefore, the magnetic collars create a magnetic environment for the magnetic measuring instrument and ensure that the data measured by the magnetic measuring instrument is true geomagnetic field information.

无磁钻铤种类

1、无磁钻铤一般按API7-1标准生产，长度一般为30FT或31FT，即9150mm或9450mm

2、按形状可分为无磁钻铤，无磁螺旋钻铤，无磁承压钻杆，无磁短节等
